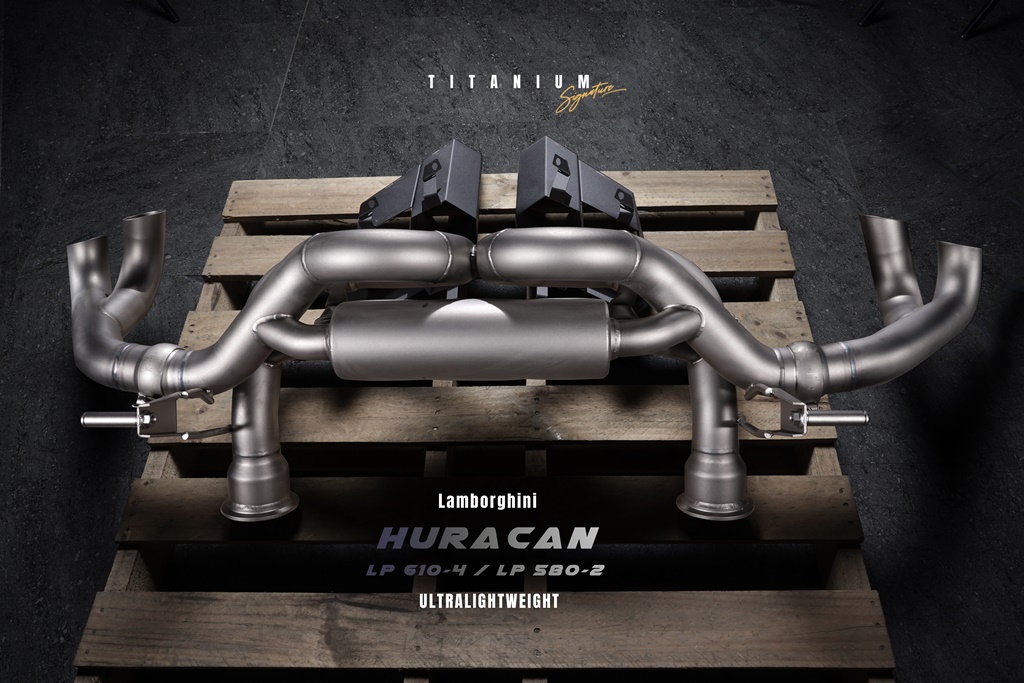

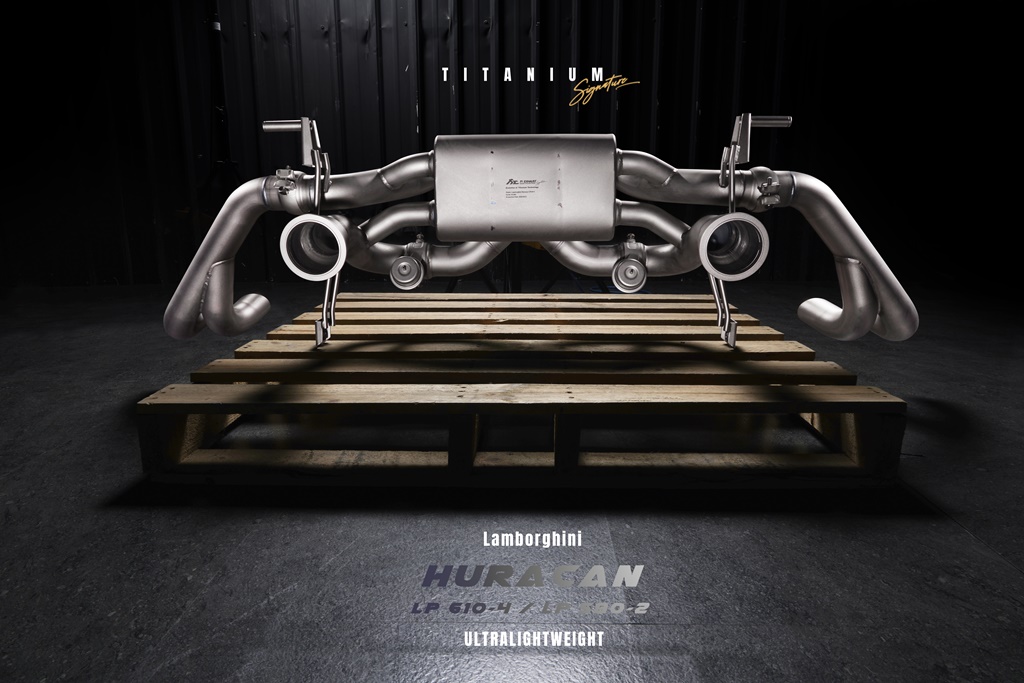

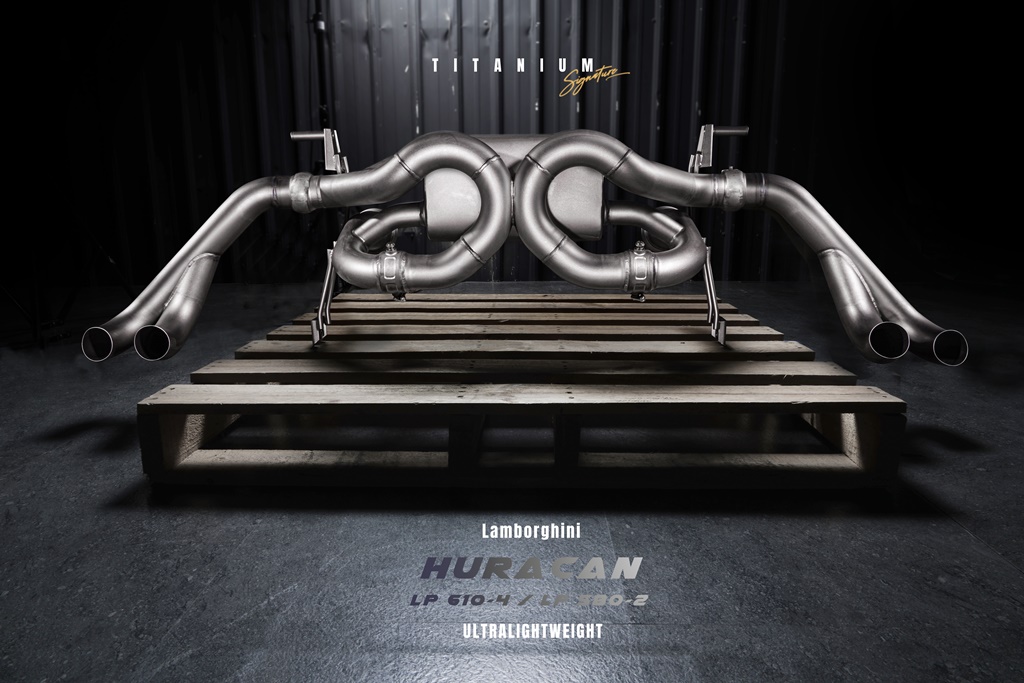

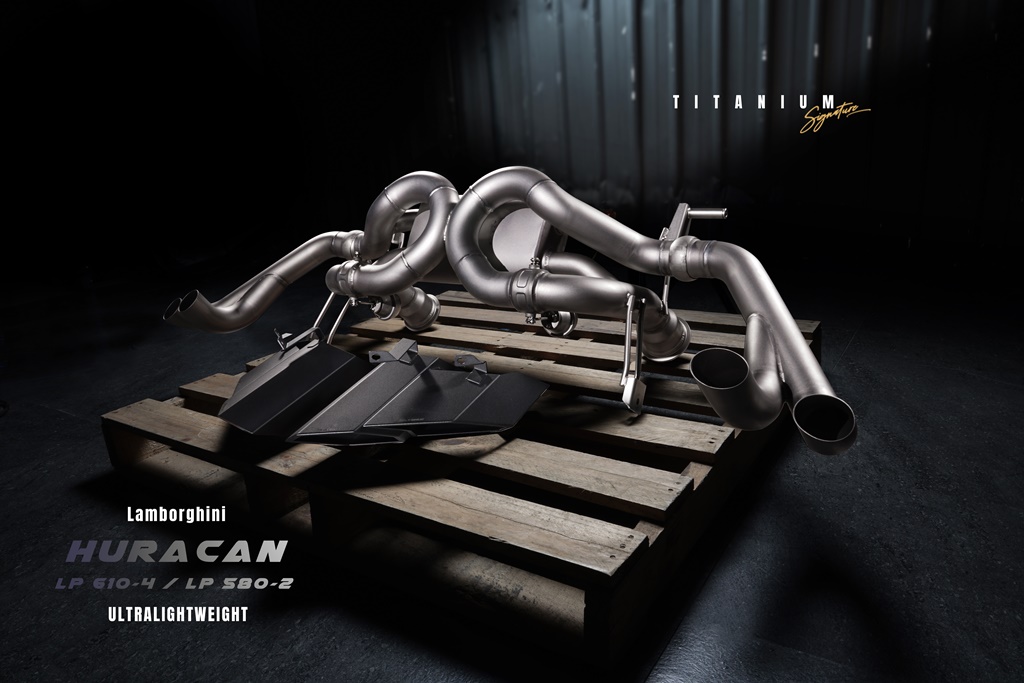

Huracan LP610-4 Titanium
Exhaust System
LM-610TI-CBV + TIP-610-S +R2020OBD+OBD-CAB-V
Titanium
MATERIAL
2014-
YEAR
V10
ENGINE
Product Description
To achieve these incredible weight savings even the tiniest component of the system, e.g., valves, clamps, screws are made out of titanium.
Pipe walls are 1.6mm thick, which is 0.6mm thicker than other aftermarket exhaust options. The thickness improves exhaust sound frequency, increases durability and product lifespan. The extra weight is not significantly detrimental to performance. However, it increases safety for the drivers.
Pipes are also polished outside and inside to achieve aesthetic and performance benefits. The polishing process smoothes a titanium metal surface to remove imperfections such as nicks or scratches and improves exhaust gas flow and quality of the exhaust sound note.
The titanium exhaust for Lamborghini Huracan LP610-4 is designed with a valvetronic technology to control airflow, sound volume and enhance the overall performance and torque. When valves are closed exhaust gasses are routed through the muffler resulting in a low-profile comfortable drive. However, when the valves are fully open an intense and exotic soundtrack is produced.
Switching between street and race sound profiles can be done using factory exhaust/sport button or drive mode, or optional Fi EXHAUST remote control and mobile App. The unique sound and performance are achieved through individually designed muffler internals that are fabricated for each car model to offer an ultimate driving experience.
Please note each part of the Fi EXHAUST system needs to be ordered separately.
Different exhaust parts are offered depending on the vehicle version.
Please note that the actual product may vary in appearance depending on the year of the car and area. The exhaust system is also subject to changes to the design over an extended time period. Product pictures are for illustration purposes only.
Fitment Information : Headers for this car model are available in Stainless Steel T304.
Catback Exhaust:
Valvetronic Muffler (Titanium) + Quad Silver Tips + OBD2/Mobile APP Remote Control System Module (LM-610TI-CBV + TIP-610-S + R2020OBD + OBD-CAB-V)
Headers (Optional):
1.Long Tube Catless Header (SS) (LM-610-HDS4 + LM-610-LKPS4)
2.Long Tube Catless Header Ceramic Coating (Gold) Service Cost (LM-610-HDCRGS4 + LM-610-LKPS4)
Tips (Optional):
1.Quad Tips in Titanium Blue (TIP-610-TB)
2.Quad Tips in Diamond Black (TIP-610-B)
3.Quad Tips in Gold (TIP-610-G)
4.Quad Square Tips in Matte Black (TIP-610s-MBS9)
Available
Valve
All Fi EXHAUST exhaust systems are equipped with valvetronic technology. This technology is not only used to control sound volume, but also enhance overall performance of the vehicle. Before the inception of this technology, horsepower and torque were irreconcilable contradictions in the design of exhaust systems. This allowed sports cars to have high torque power at low rev speeds and even higher horsepower capability at high rev speeds.

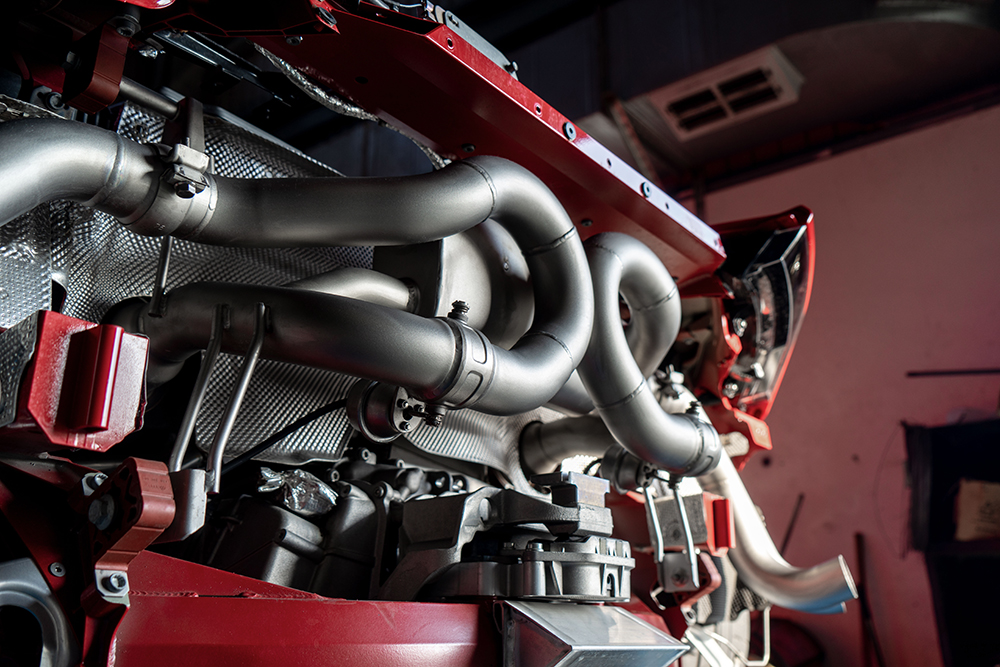

Headers
Fi EXHAUST headers boost the rate of the of the exhaust flow out of the engine compared to the OEM stock exhaust manifolds. It the perfect combination with Fi EXHAUST free flowing larger-diameter pipes and mufflers. For selected car models long tube headers are available to boost horsepower performance.
Fi EXHAUST Pro Control System
Fi EXHAUST Pro Control System control system consist of intelligent control box, sporty 2 button style remote control and mobile App.
*The mobile App scans and deletes CEL using manual or Auto scan on the engine startup.
* Monitor real-time valve status with Fi EXHAUST Pro App’s intuitive and friendly interface.
* Assign Auto Mode data values. Afterwards the system will intelligently detect engine RPM/Speed/Turbo Boost and turn on the valves.
* Each remote control button can be assigned with 1 function to open/close the valves or activate Auto Mode delivering more precision in the hands of the driver.
* The design is smooth and offers a nice grip, and the aluminum alloy ring can be customized in 14 different colors or switched to forged carbon with a unique marble like texture.
Find more info about the Fi Pro.

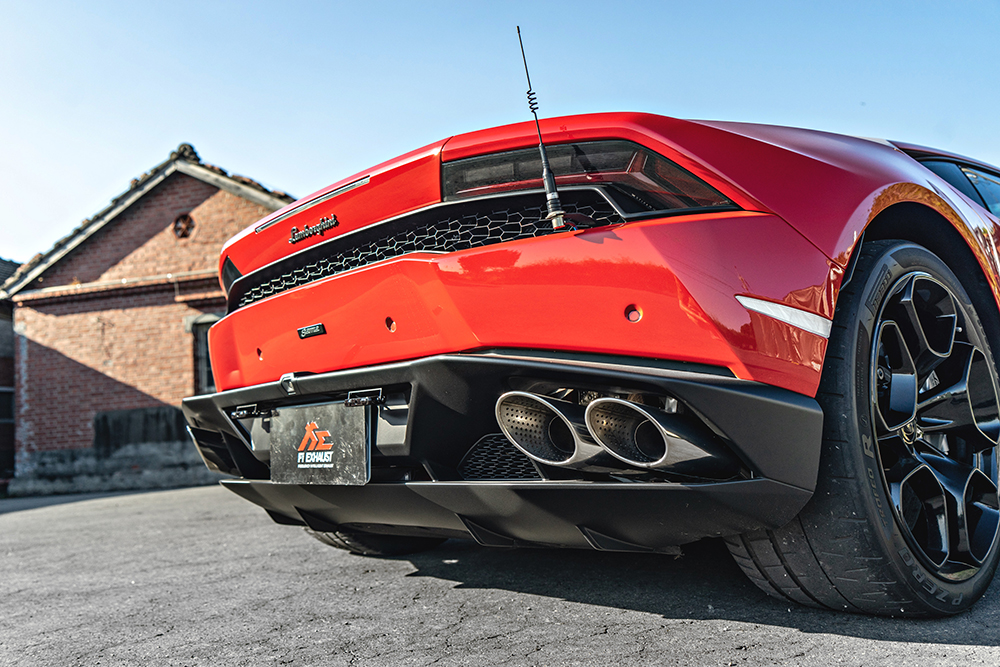

Quad Tips
Silver:
The silver color tips are standard and are included with a valvetronic catback purchase. Each tip is engraved with Fi EXHAUST logo.
Titanium Blue:
Titanium blue tips are heat colored to achieve a beautiful color transition from silver to blue and purple color combination.
Diamond Black:
After electroplating and double polishing process a shiny and glossy color surface is achieved on diamond black tips. Each tip is engraved with Fi EXHAUST logo.
Gold:
After electroplating and double polishing process a shiny and gold color surface is achieved on gold tips. Each tip is engraved with Fi EXHAUST logo.
Matte Black:
Matte Black tips are pure and elegant and a surface is without a shine. Each tip is engraved with Fi EXHAUST logo.
TIP-610-S
Silver:
The silver color tips are standard and are included with a valvetronic catback purchase. Each tip is engraved with Fi EXHAUST logo.
Titanium Blue:
Titanium blue tips are heat colored to achieve a beautiful color transition from silver to blue and purple color combination.
Diamond Black:
After electroplating and double polishing process a shiny and glossy color surface is achieved on diamond black tips. Each tip is engraved with Fi EXHAUST logo.
Gold:
After electroplating and double polishing process a shiny and gold color surface is achieved on gold tips. Each tip is engraved with Fi EXHAUST logo.
Matte Black:
Matte Black tips are pure and elegant and a surface is without a shine. Each tip is engraved with Fi EXHAUST logo.
TIP-610-TB
Silver:
The silver color tips are standard and are included with a valvetronic catback purchase. Each tip is engraved with Fi EXHAUST logo.
Titanium Blue:
Titanium blue tips are heat colored to achieve a beautiful color transition from silver to blue and purple color combination.
Diamond Black:
After electroplating and double polishing process a shiny and glossy color surface is achieved on diamond black tips. Each tip is engraved with Fi EXHAUST logo.
Gold:
After electroplating and double polishing process a shiny and gold color surface is achieved on gold tips. Each tip is engraved with Fi EXHAUST logo.
Matte Black:
Matte Black tips are pure and elegant and a surface is without a shine. Each tip is engraved with Fi EXHAUST logo.
TIP-610-B
Silver:
The silver color tips are standard and are included with a valvetronic catback purchase. Each tip is engraved with Fi EXHAUST logo.
Titanium Blue:
Titanium blue tips are heat colored to achieve a beautiful color transition from silver to blue and purple color combination.
Diamond Black:
After electroplating and double polishing process a shiny and glossy color surface is achieved on diamond black tips. Each tip is engraved with Fi EXHAUST logo.
Gold:
After electroplating and double polishing process a shiny and gold color surface is achieved on gold tips. Each tip is engraved with Fi EXHAUST logo.
Matte Black:
Matte Black tips are pure and elegant and a surface is without a shine. Each tip is engraved with Fi EXHAUST logo.
TIP-610-G
Silver:
The silver color tips are standard and are included with a valvetronic catback purchase. Each tip is engraved with Fi EXHAUST logo.
Titanium Blue:
Titanium blue tips are heat colored to achieve a beautiful color transition from silver to blue and purple color combination.
Diamond Black:
After electroplating and double polishing process a shiny and glossy color surface is achieved on diamond black tips. Each tip is engraved with Fi EXHAUST logo.
Gold:
After electroplating and double polishing process a shiny and gold color surface is achieved on gold tips. Each tip is engraved with Fi EXHAUST logo.
Matte Black:
Matte Black tips are pure and elegant and a surface is without a shine. Each tip is engraved with Fi EXHAUST logo.
TIP-610s-MBS9
Ceramic Coating
Fi EXHAUST eliminates traditional thermal insulation materials that contain toxic substances, and directly coats the exhaust pipe with a nano-ceramic coating to protect from corrosion, reduce heat exposure to heat sensitive components in the engine bay and keeps temperature low. It’s a great way to improve longevity of the exhaust and other components prone to thermal degradation like wiring.
