720S Coupe / Spider Titanium
Exhaust System
MC-720Ti-CBOE / MC-720Ti-CBE
Titanium
MATERIAL
2017-
YEAR
4.0TT V8
ENGINE
8.03KG
CATBACK
Product Description
To achieve these incredible weight savings even the tiniest component of the system, e.g., valves, clamps, screws are made out of titanium.
Pipe walls are 1.6mm thick, which is 0.6mm thicker than other aftermarket exhaust options. The thickness improves exhaust sound frequency, increases durability and product lifespan. The extra weight is not significantly detrimental to performance. However, it increases safety for the drivers.
Pipes are also polished outside and inside to achieve aesthetic and performance benefits. The polishing process smoothes a titanium metal surface to remove imperfections such as nicks or scratches and improves exhaust gas flow and quality of the exhaust sound note.
The titanium exhaust for McLaren 720S Coupe / Spider Titanium is designed with a valvetronic technology to control airflow, sound volume and enhance the overall performance and torque. When valves are closed exhaust gasses are routed through the muffler resulting in a low-profile comfortable drive. However, when the valves are fully open an intense and exotic soundtrack is produced.
Switching between street and race sound profiles can be done using factory exhaust/sport button or drive mode, or optional Fi EXHAUST remote control and mobile App. The unique sound and performance are achieved through individually designed muffler internals that are fabricated for each car model to offer an ultimate driving experience.
Please note each part of the Fi EXHAUST system needs to be ordered separately.
Different exhaust parts are offered depending on the vehicle version.
Please note that the actual product may vary in appearance depending on the year of the car and area. The exhaust system is also subject to changes to the design over an extended time period. Product pictures are for illustration purposes only.

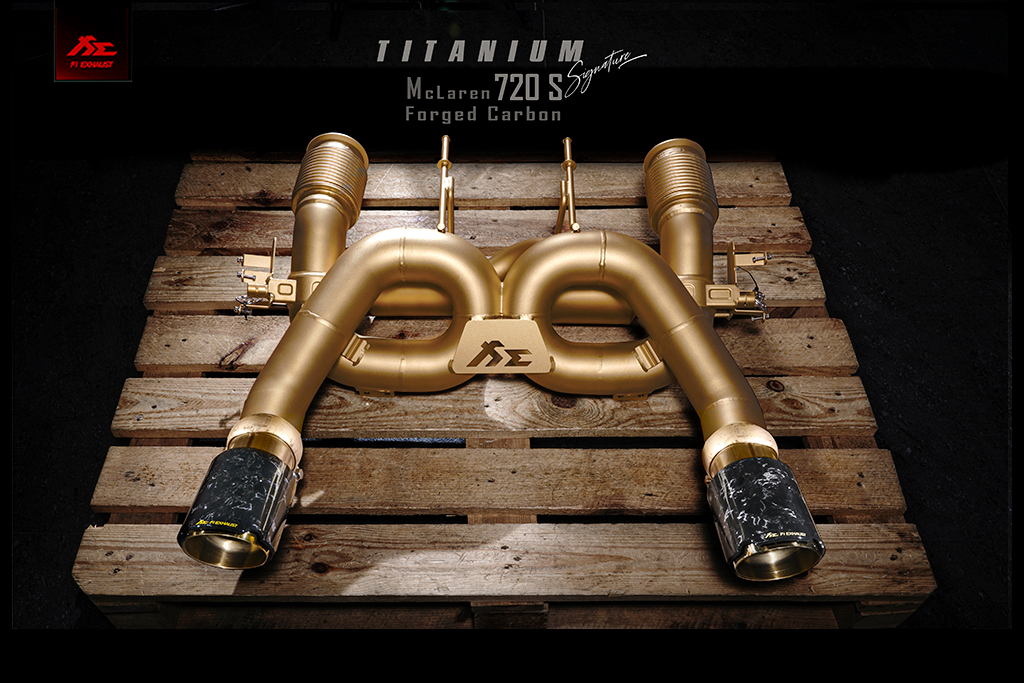

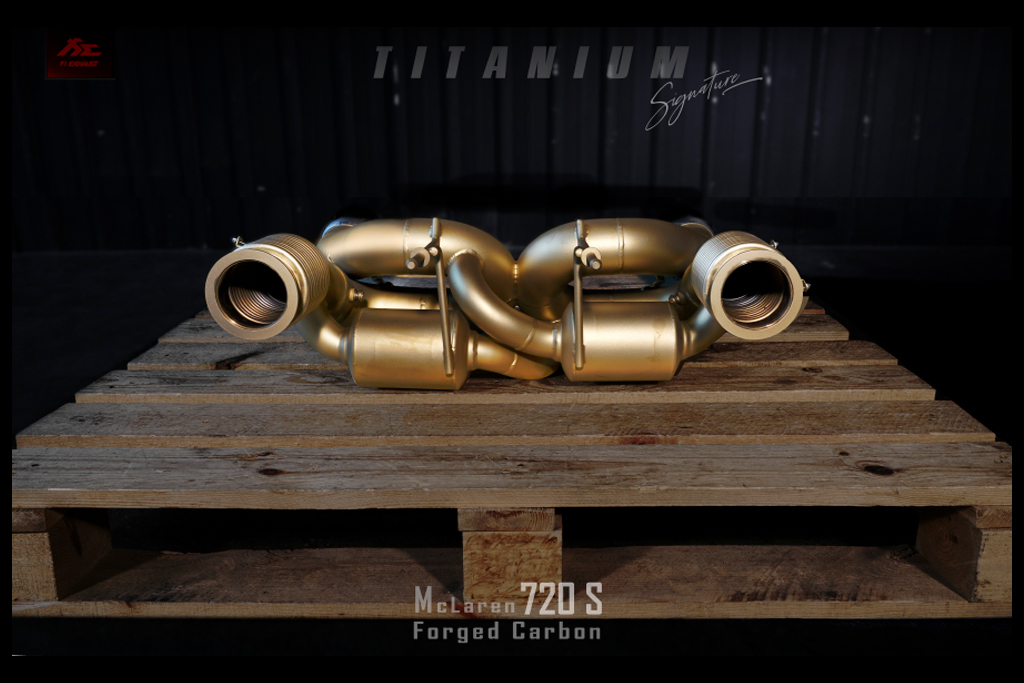

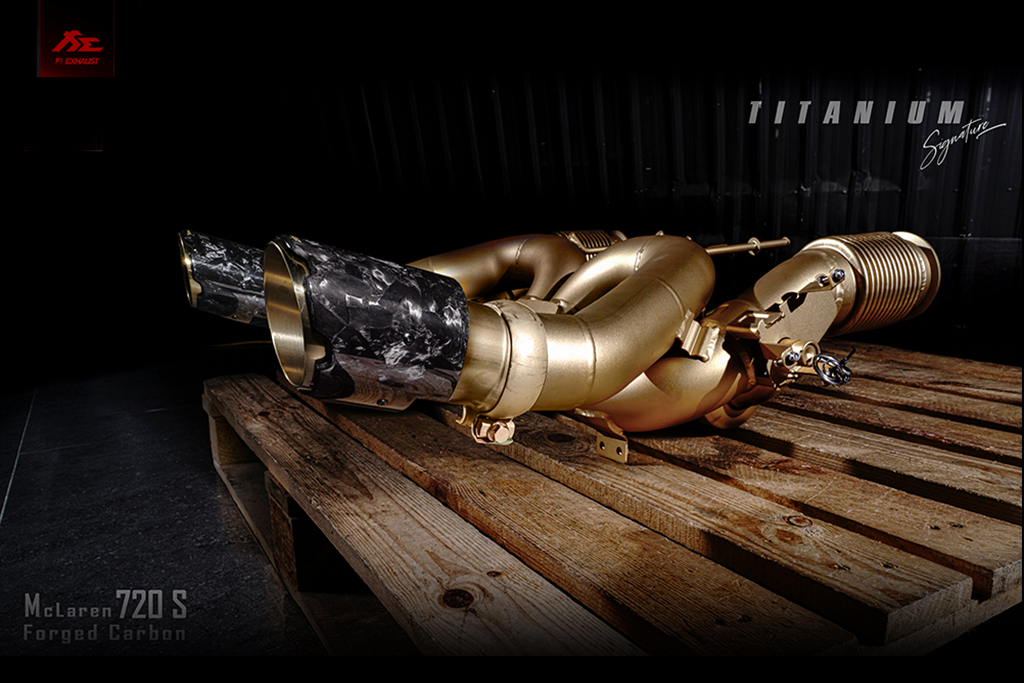

Catback Exhaust:
Valved Version:
Valvetronic Muffler (Titanium ) + Dual Titanium Tips in Forged Carbon fiber + OBD2/Mobile APP Remote Control System Module (High chance of texture/color change under constant exposure to high temperature) (MC-720Ti-CBE + ACT-BN*2 + TIP-720Ti-FC + R2020OBD + OBD-CAB-BNE)
Valved Version (OEM):
Valvetronic Muffler (Titanium ) + Dual Titanium Tips in Forged Carbon (Compatible with OEM elect. Valve - Stock Setting) (MC-720Ti-CBOE + TIP-720Ti-FC)
Downpipes (Optional):
Ultra High Flow DownPipe (Titanium ) + Heat Protector for DownPipe (MC-720Ti-NCAT + MC-720-HPS8)
Tips (Optional):
1.Dual Titanium Tips in Forged Carbon with Gold Insert(Silver logo) (High chance of texture/color change under constant exposure to high temperature) (TIP-720Ti-FCGSL)
2.Dual Titanium Tips in Forged Carbon with Gold Insert(Silver logo) (High chance of texture/color change under constant exposure to high temperature) (TIP-720Ti-FCGSL)
Fi EXHAUST Pro Remote Control System (Optional):
Valved Version (OEM):
OBD2/Mobile APP Remote Control System Module（Reverse version) (R2020OBD-R + OBD-CAB-MBE)
Available
Valve / NON-Valve
Non-Valved version removes exhaust valves from the design to provide an unrestricted exhaust gas flow, reduce weight and produce maximum sound volume.
However, the valved version integrates exhaust valves in the design. The valvetronic technology is not only used to control sound volume from Street to Race sound profiles, but also enhances overall performance of the vehicle. When the valve is closed it helps the induction of car exhaust back pressure and increases torque at low RPM. However, when the valve is open in addition to an increase in horsepower at high RPMs it produces a rich sound tone and raises sound volume.
Titanium Downpipes
The ultra-light and ultra-high flow Titanium catless downpipes remove restrictive factory catalytic convertor. They increase exhaust gas flow and performance gains, produce higher sound volume. And is usually recommended option going further with tuning. The downpipe is also equipped with a dummy oxygen sensor to reduce a change of the check engine light (CEL).
Fi EXHAUST Pro Control System
Fi EXHAUST Pro Control System control system consist of intelligent control box, sporty 2 button style remote control and mobile App.
*The mobile App scans and deletes CEL using manual or Auto scan on the engine startup.
* Monitor real-time valve status with Fi EXHAUST Pro App’s intuitive and friendly interface.
* Assign Auto Mode data values. Afterwards the system will intelligently detect engine RPM/Speed/Turbo Boost and turn on the valves.
* Each remote control button can be assigned with 1 function to open/close the valves or activate Auto Mode delivering more precision in the hands of the driver.
* The design is smooth and offers a nice grip, and the aluminum alloy ring can be customized in 14 different colors or switched to forged carbon with a unique marble like texture.
Find more info about the Fi Pro.
Compatibility with OEM sport button/mode.
The intelligent valve functionality can be controlled using OEM sport button/mode to switch between valves ON/OFF and regulate desired sound volume. FI EXHAUST remote control is not needed and is an optional upgrade to have more control over exhaust valve behavior.
Dual Tips

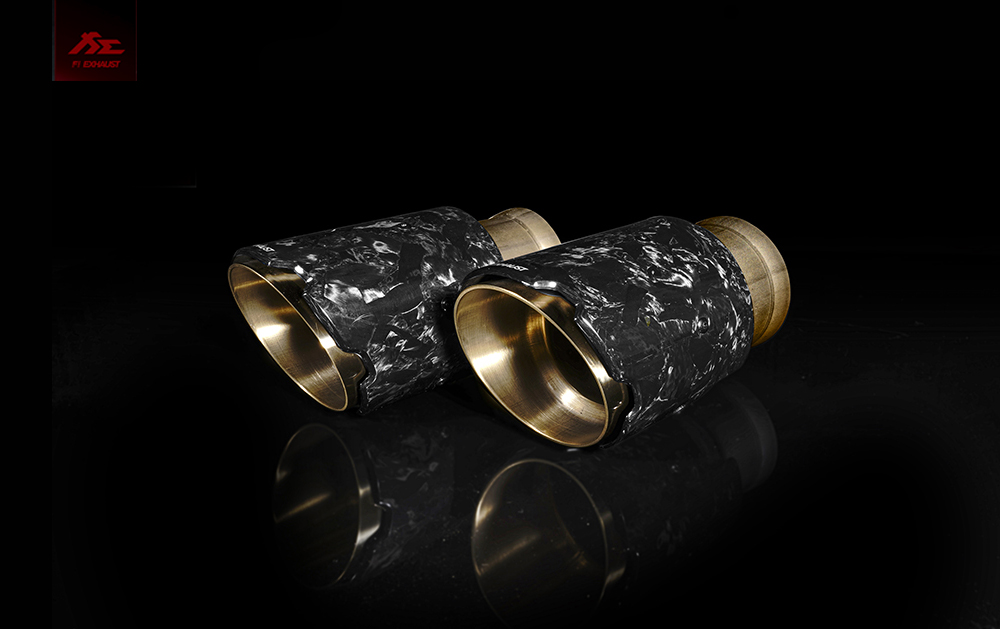

Forged Carbon:
Forged carbon material is forged at high temperature and pressure to product a surface with a marble-like texture in different patters making each tip unique. The insert comes standard in silver. However, other insert color is available that can be customized with Fi EXHAUST logo color engraving.
TIP-720Ti-FC

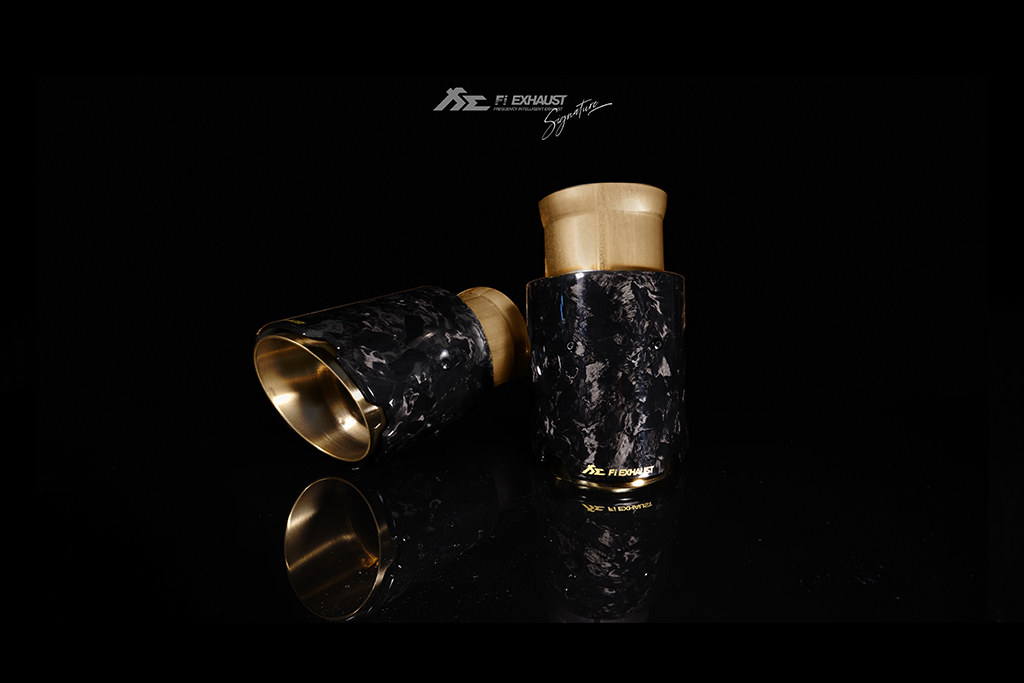

Forged Carbon:
Forged carbon material is forged at high temperature and pressure to product a surface with a marble-like texture in different patters making each tip unique. The insert comes standard in silver. However, other insert color is available that can be customized with Fi EXHAUST logo color engraving.
.jpg)
TIP-720Ti-FCGSL
Heat Protection Jacket
Fi EXHAUST special heat protection sleeve for supercar models consists of three material layers. The first layer is fireproof cloth withstanding temperatures up to 1100°C. The middle layer is made out of white ceramic fiber, which has a low thermal conductivity. And the final layer is beautifully designed waterproof and oil resistant thermo jacket.
Ceramic Coating
Fi EXHAUST eliminates traditional thermal insulation materials that contain toxic substances, and directly coats the exhaust pipe with a nano-ceramic coating to protect from corrosion, reduce heat exposure to heat sensitive components in the engine bay and keeps temperature low. It’s a great way to improve longevity of the exhaust and other components prone to thermal degradation like wiring.
